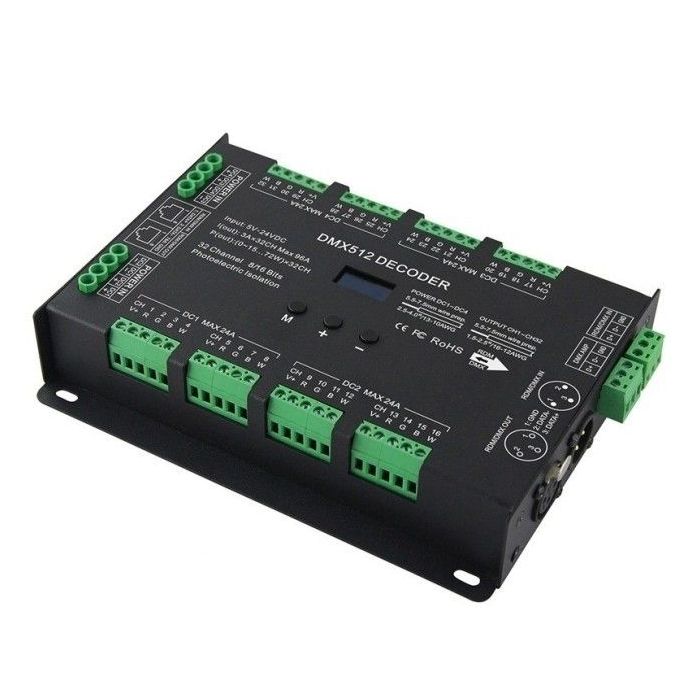

BC-632 Bincolor 5V-24V DMX-PWM Decoder 32CH Switch Driver Led Controller

Be the first to review this product

£98.55

In stock

SKU

BC-632 Bincolor 5V-24V DMX-PWM Decoder 32CH Switch Driver

BC-632 Bincolor 5V-24V DMX-PWM Decoder 32CH Switch Driver Led Controller is high quailty LED product for LED lighting decoration projects, For big order or customized order, Pls feel free to contact service@agoau.com

Agoau.com supply advanced, durable and effective LED products to USA, UK, Germany, France, Spain and other counties for many years. Quality LED lighting equipment and systems with the latest technology.Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

This DMX512 Constant Voltage Decoder is developed only for constant voltage LED lamps. It adopts advanced

micro-computer control technology to transfer DMX512/1990 signal to PWM signal. 32 channels output, max

3A each channel, 65536 gray scales, workable for single color, color temperature, RGB and RGBW led lamp.

Basic Features:

Support RDM function.

Optional output frequency 1K,2K,4K,8K.

Output gamma curve can be adjusted.

DMX decoding supports 8 bits or 16 bits.

OLED display.

32 channels output.

Power-off data saved function.

Specifications:

Model: BC-632 (32CH DMX512 Decoder)

Input voltage: DC5V-24V

Max load current: 3A/CHx32, Max 96A

Max output power: 480W(5V)/1152W(12V)/2304W(24V)

Scale Levels: 65536 levels

Input signal: DMX512/RDM, 8Bit,16Bit optional

Output Signal: Constant Voltage PWMx32CH

Decode channel: 32CH

DMX512 socket : XLR-3R/ Rj45/ Terminal block

Control mode:DIM /CT /RGB /RGBW 4 modes switch

Dimension:L195 x W145 x H38(mm)

Weight (G.W):810g

Package Included:

1 Piece of BC-632 Bincolor 5V-24V DMX-PWM Decoder 32CH Switch Driver Led Controller

Bincolor_Controller_BC_632_1

Bincolor_Controller_BC_632_2

Bincolor_Controller_BC_632_3

Bincolor_Controller_BC_632_4

Bincolor_Controller_BC_632_5

Bincolor_Controller_BC_632_6

Bincolor_Controller_BC_632_7

Bincolor_Controller_BC_632_8

Bincolor_Controller_BC_632_9

CE and RoHS approved
