WS2813 led strip Main feature:
One pixel damaged will not affect the other LEDs working.
The power protection,if +5V and GND reverse polarity,the LED will not be burned.
Dual signal wires version, signal can jump to transfer.
The original electronic devices integrated,it does not cause virtual welding in the installation process.
LED ............... 144 independently controllable RGB LEDs
IC Type .............. improved version ws2813 IC(built inside the 5050 smd rgb led)
of IC ................(1 IC drives 1 led chip)
Pixels ......... 144/meter
Power ..............144leds/m----43.2watt/meter
Cuttable ...........every LED is cuttable
Colors ........... Full color RGB, dream color changing
Grey scale ............. 256
Input voltage............. DC5V
FPC Width .............. (144led)--IP20 is 12mm,IP67 is 14mm
FPC color ......... White/Black
Protection Rate: Pls Choose
IP30 Non-Waterproof with 3M Tape on the back,
IP65 Waterproof Dripping Glue with 3M Tape on the back,
IP67 Waterproof Outer Casing Silicone without 3M Tape on the Back
LED WS2813 Symphony light strip Function Description:
Happy control a single lamp, water, windows, rear meteor, chasing, pattern change animation, video, text,
and so on. Use of the lamp, in which a pixel bad, does not affect the normal operation of other lights so as
not to affect the overall results. Any color can show, random combinations into any pattern, in particular
made light of the screen to use. No separate address to write to the lamp can be achieved HTTP, installation
easier. Meanwhile lamp beads which also integrates a capacitive resistance, so that electronic components
do not need to be on board the auxiliary light bar, thus increasing the stability of the product.
Package Include:

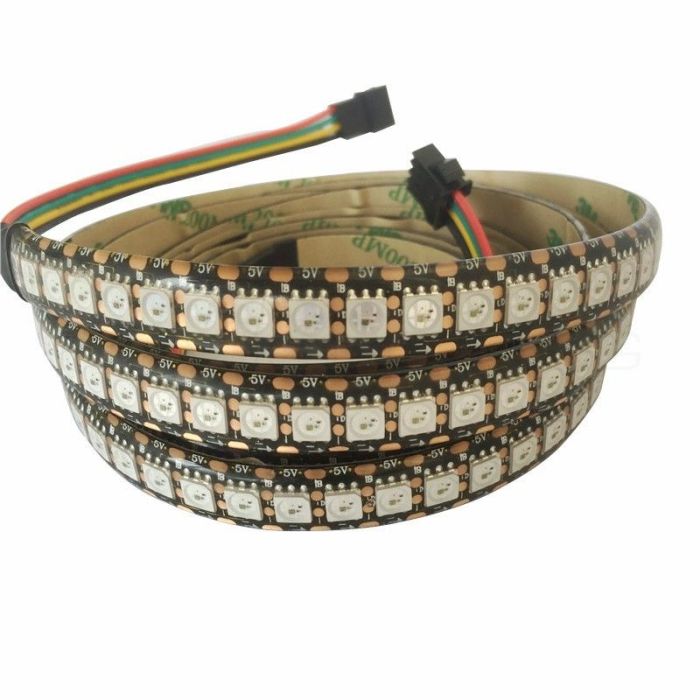

1 Piece of 1M Ws2813 144leds/m 5v 5050 Addressable Led Strip 2813 IC 144pixels Light
CE and RoHS approved
